We recently completed the pile foundation design for a six-story mixed-use building on No. 3 Road, right in the heart of Richmond’s city centre. The geotechnical profile was typical for the area: 4 meters of loose organic silt over 18 meters of compressible marine clay, sitting on dense glacial till at about 22 meters depth. The structural engineer had specified a maximum allowable settlement of 12 mm, which immediately ruled out shallow footings. We designed a grid of driven closed-end steel pipe piles, socketed 3 meters into the till, with capacities verified through CPT testing at each critical column location. Richmond sits on the Fraser River delta, and the soil stratigraphy changes block by block. You cannot extrapolate pile capacity from one site to the next without serious risk. The team also ran a liquefaction assessment to confirm the dense till would not lose strength under the design earthquake—critical given Richmond’s seismic setting south of Vancouver.
In Richmond’s delta soils, pile capacity is governed more by downdrag and seismic settlement than by static bearing resistance alone.

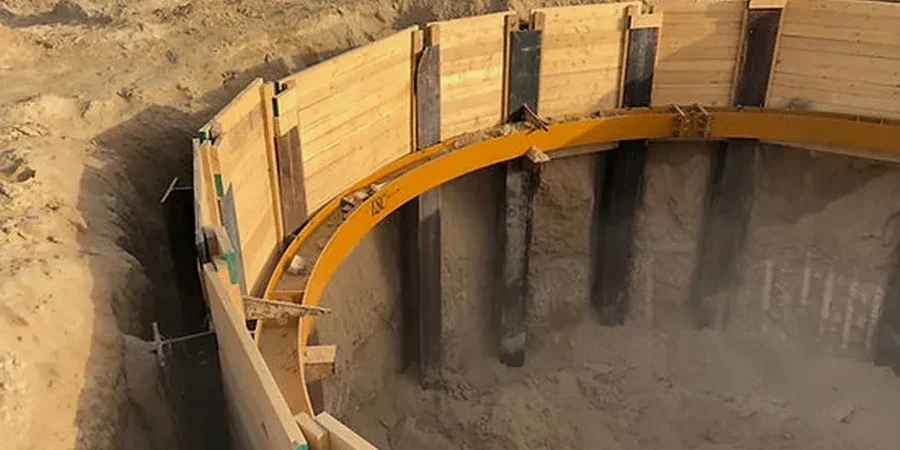

Methodology applied in Richmond BC
Critical ground factors in Richmond BC
The NBCC 2020 seismic hazard model puts Richmond in a high spectral acceleration zone, and the site class—typically Class E or F on the delta—amplifies ground motion. A pile foundation design that ignores kinematic soil-pile interaction during shaking can underestimate bending moments at the pile head by 30% or more. We have seen projects where a few missing meters of pile embedment in the till led to differential settlements exceeding 40 mm within the first year, cracking partition walls and jamming elevator rails. The risk is amplified on sites with variable fill thickness, where the transition from end-bearing to friction piles happens unexpectedly. We run t-z analyses with LPILE or similar for every pile group, and we never rely on textbook skin friction values for the organic silt layer—those values are negligible, and assuming anything higher is dangerous.
Our services
Our pile foundation design process in Richmond covers the full spectrum from geotechnical investigation through construction support.
Axial capacity analysis
Static and dynamic capacity calculations using CPT-based methods (LCPC, ICP), beta-method for shaft friction, and end-bearing evaluation in till. We incorporate downdrag loads from consolidating clay.
Pile load test design and interpretation
Design of static compression load test programs per ASTM D1143, including reaction frame sizing and instrumentation layout. PDA monitoring and CAPWAP signal matching for driven piles.
Lateral and seismic response
LPILE and GROUP analyses for lateral deflection and bending moment under NBCC 2020 seismic loads. Kinematic interaction from site response analysis included where site class requires it.
Settlement and group effects
Equivalent raft and interaction factor methods for pile group settlement prediction. Consolidation settlement of underlying clay layers is checked separately from immediate settlement of the till.
Frequently asked questions
What is the typical pile depth for a residential building in Richmond?
Most residential projects in Richmond require piles reaching the dense glacial till, which is typically found between 18 and 25 meters below grade. The pile embedment into the till is usually 2.5 to 4 meters to develop sufficient end bearing and prevent punching under seismic loads. A 22-meter pile with a 324 mm diameter is a common starting point for a three-story townhouse complex, though final depth depends on the specific CPT profile at the site.
How much does a pile foundation design cost for a Richmond BC project?
For a standard residential or light commercial project in Richmond, pile foundation design fees generally range from CA$1,970 to CA$8,980 depending on the number of piles, complexity of the soil profile, and whether a static load test program is required. Larger projects with instrumented test piles and full seismic interaction analysis fall at the higher end of the range.
Do I need a pile load test for my Richmond project?
The Canadian Foundation Engineering Manual and Richmond’s building department both encourage load testing when pile capacity is a significant design factor. For projects with more than 20 piles or where the till surface is irregular, we typically recommend at least one static compression test plus PDA monitoring on a percentage of production piles. This verifies the design assumptions and often allows for higher resistance factors, which can reduce pile count.
How does liquefaction affect pile design in Richmond?
Liquefaction of the upper loose silt and sand layers during a design earthquake can eliminate skin friction in those zones and impose downdrag loads as the surrounding soil settles. We evaluate this using SPT or CPT-based triggering methods, then calculate the neutral plane location where settlement of the soil equals settlement of the pile. The pile is designed structurally for the full downdrag load, and the bearing capacity in the till must support both the structural load and the added skin friction from above.
